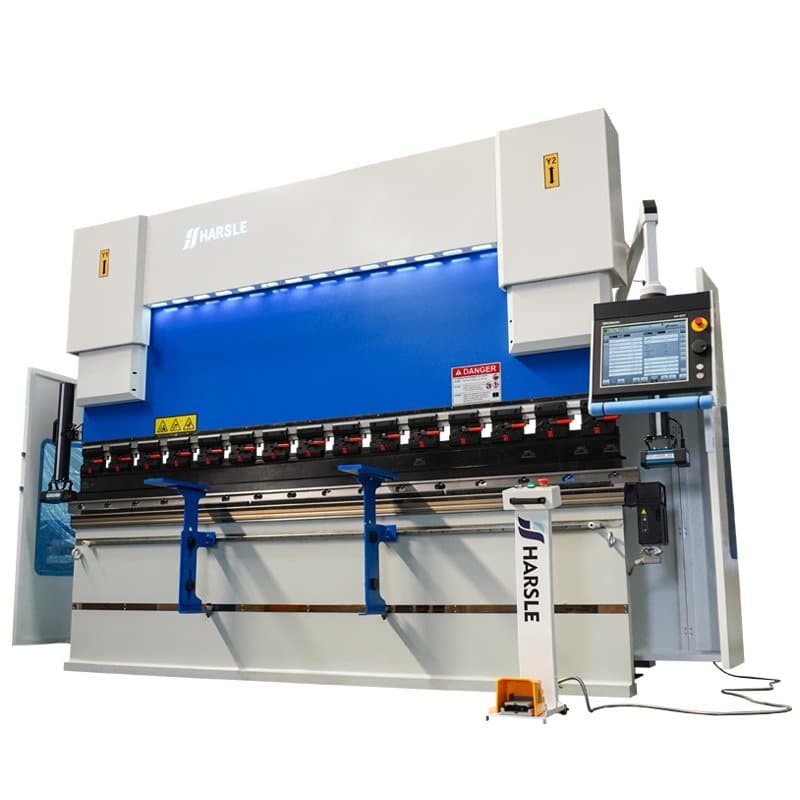

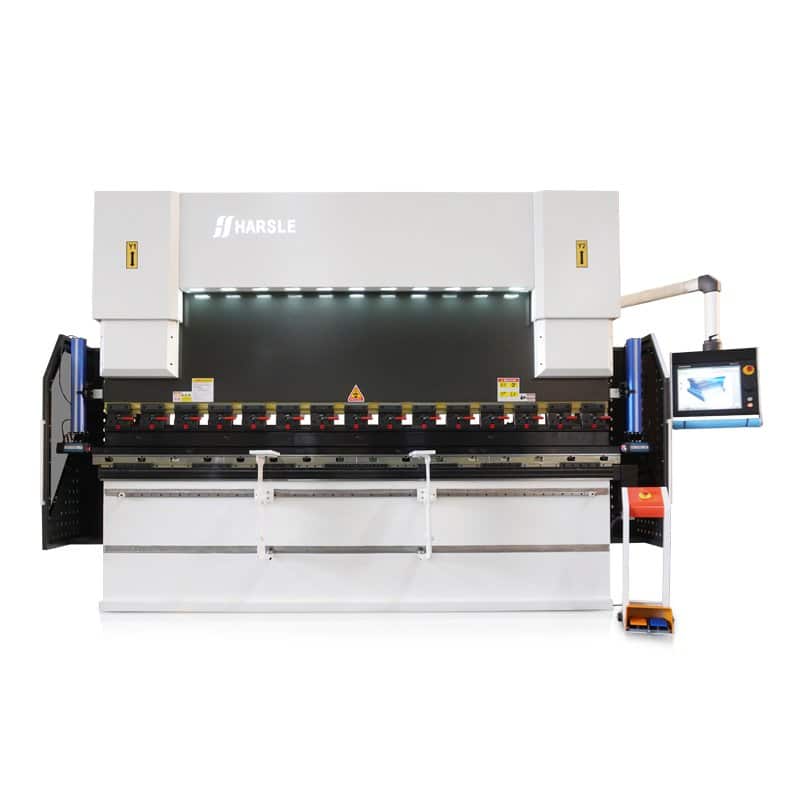

100 Ton Hydraulic Bending Machine with DA69T

100 ton hydraulic Bending Machine is a machine tool used for bending and forming sheet metal into various shapes. It uses a hydraulic system to apply force to a metal workpiece, which is then pushed against a die to create a bend or angle. The press brake can be operated manually or by using computer numerical control (CNC) to automate the process.The term “100-ton” refers to the maximum force that the machine can exert, which is measured in tons of pressure. This indicates the strength and capacity of the press brake, which can handle thicker and heavier metal sheets compared to lower tonnage machines. 100 Ton Hydraulic Bending MachineThe hydraulic system of the press brake consists of a hydraulic pump, hydraulic cylinders, and valves that control the flow of hydraulic fluid to apply force to the workpiece. The machine also features a back gauge, which is a device that helps position the metal sheet accurately for precise bends.Overall, a 100 Ton Hydraulic Bending Machine is a powerful and versatile tool for metal fabrication and is commonly used in industries such as automotive, aerospace, and construction.100 ton hydraulic Bending Machine Safety Introduction1 The machine two sides have the safety-fence2 The machine back side has the door with the electrical safety switch3 The machine has laser protection, which can protect the worker4 The machine meets the CE standard 100 ton hydraulic Bending Machine Feature1 Fashionable design, high rigidity, high speed electro-hydraulic synchronous CNC sheet metal bending machine.2 The electro-hydraulic full servo system coupled with the precise positioning of the grating ruler to realize full closed-loop control.3 The hydraulic or mechanical deflection compensation of the worktable ensures the machining accuracy of the workpiece.4 The back gauge is driven by a servo motor, driven by ball screws, and guided by linear guide rails to ensure positioning accuracy. 100 ton hydraulic Bending Machine DA69T controller3D and 2D graphical touch screen programming mode 3D visualization in simulation and production Crowning system control 17″ high-resolution color TFT Date backup/ restore via USB Bending tool/material/product library Sensor bending & correction interface Profile-T3D offline softwareCNC hydraulic press bending machine CNC Axis ExplanationY1                    Left cylinder electro-hydraulic synchronous closed-loop control axis Y2                    Right cylinder electro-hydraulic synchronous closed-loop control axis X (X1, X2)        Back gauge moving axis (back and front) R(R1, R2)          Back gauge moving axis (up and down) Z1, Z2               Two stop fingers moving axis (left and right) V                      CNC crowning axis
