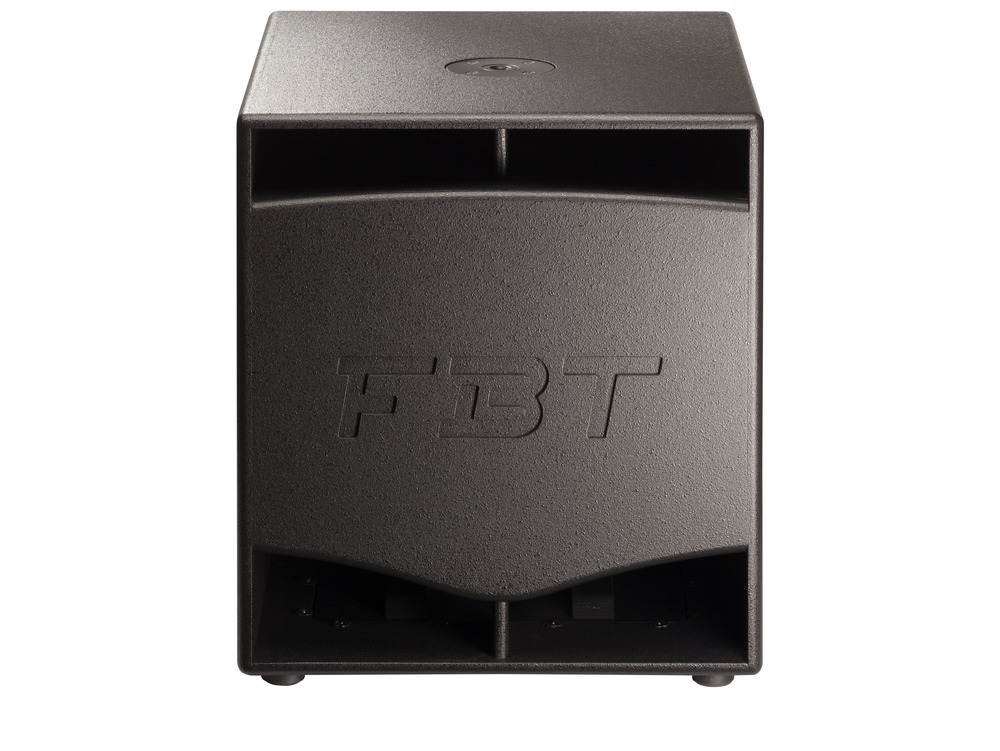

FBT ProMaxX 15SA Active Subwoofer

Product DetailsProduct SpecificationsProduct Details Overview FBT ProMaxX 15sa Active Subwoofer  The FBT ProMaxX 15SA is an active 15″ subwoofer featuring a high excursion woofer with a 3′ voice coil, custom made for FBT by B&C. The Baltic birch ply cabinet is a compact band-pass design. Built in amplification is a 1200 Watts module made and designed in Italy delivering 136dB SPL. KEY FEATURES Compact band-pass design subwoofer with high SPL and punch. 380 mm (15”) high excursion woofer with 75 mm (3”) voice coil, custom made for FBT by B&C. Frequency response from 38Hz to 120Hz. 1200W RMS Class D power amplifier with switch mode power supply. Digital Signal Processor with 8 presets, 2 equalization with 4 LPF different frequency. Control Panel with XLR input and link out, Volume, EQ Presets, Delay, Phase Switch 0°-180°, Ground-Lift Switch. 15mm (5/8”) Baltic birch plywood cabinet with scratch & scuff resistant paint finish. M20 (20 mm) top mount speaker stand socket, two aluminum carrying handles. Provides additional low frequency reinforcement when used along with 2 – way ProMaxX speakers. PRODUCT DESCRIPTION The FBT ProMaxX 15SA is a 15-inch band-pass subwoofer and is the perfect low-frequency extension for the ProMaxX range. The ProMaxX 15SA offers a frequency response of 38Hz – 120Hz with a maximum sound pressure level of 136dB at peak thanks to the Class-D 1200W RMS purpose built power amplifier with a highly efficient switch power mode. Housed in a 0.59-inch thick Baltic birch plywood construction has been covered in scratch-resistant black paint and comes with a top-mounted M20 stand adapter and two aluminium handles. The FBT ProMaxX 15SA provides the user with a digital signal processing platform (DSP) with eight presets, two of which are EQs and four low-pass filters and two slots to save your own settings to. Other features include a control panel that grants access to XLR in & link, volume control, EQ presets, delay and phase switch from 0-180 degrees. Product Specifications Product Specifications Configuration: Band pass 1 way Built-in amplifier LF/HF: 1200W RMS Built-in amplifier peak LF/HF: 2400w Frequency response: 38 – 120Hz Low Frequency woofer: 15″ Neodymium with 3″ VC Maximum SPL cont/peak: 132 / 136 dB Dispersion: Omnidirectional Input impedance: 22kohm Crossover Frequency: Preset Dependent AC Power requirements: 640VA Input connector: XLR with link out Power cord: 5m IEC Net Dimension (WxHxD): 507 x 585 x 605mm Net Weight: 31kg Transport Dimension (WxHxD): 615 x 670 x 715mm Transport Weight: 35kg
