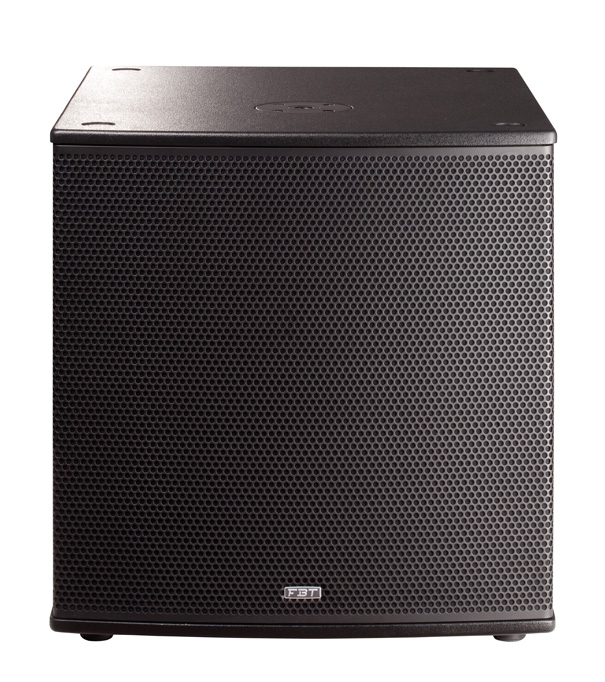

FBT Vertus CLA 118SA Active Subwoofer

Product DetailsProduct SpecificationProduct Details Overview FBT Vertus CLA 118SA Active Subwoofer KEY FEATURES Active subwoofer in bass-reflex design 460mm (18”) B&C high excursion woofer with 75mm (3”) voice coil Frequency response from 33Hz to 100Hz 1200W RMS Class D power amplifier with swittching mode power supply Processor DSP with 8 presets, cardioid configuration, delay Control Panel with XLR input and link, volume, presets, delay, phase 0 ° -180 °, ground-lift Neutrik powerCON True1 power IN and LINK connectors 15mm (5/8”) birch plywood with scratch-resistant coating Stackable M20 (20mm) top mount speaker stand socket, two diecast aluminium carrying handles with rubber inserts Optional 4 swivel-mount casters 80mm (3.15”) on request Suitable for low frequency extension and reinforcement of the CLA406A array, especially for live performance The CLA 118SA is a subwoofer in birch plywood with a 460mm woofer from B&C in a bass reflex port with an extensive laminar airflow, minimizing turbulence and power compression. The Class-D, switching power amplifier module is constructed in die-cast aluminum with natural convection, and is rated at 1200W. Onboard DSP also offers functions such as filtering, equalization and protection. When you need to extend the performance of the CLA406A, especially in live applications, the FBT Vertus CLA 118SA Active Subwoofer acts as a support and base for the CLA406A column that can be applied, via optional hardware, with M20 points positioned on the top of the sub. The FBT Vertus CLA 118SA Active Subwoofer is also modular and can be stacked thanks to special milling, increasing the SPL and raising the base of CLA406A. Product Specification Product Specifications Configuration: 1 Way bass reflex Built-in amplifier LF/HF: 1200W RMS Built-in amplifier peak LF/HF: 2400w Frequency response: 33Hz – 120Hz Low Frequency woofer: 18″ with 3″ VC Maximum SPL cont/peak: 134 / 138dB Dispersion: Omnidirectional Input impedance: 22kohm Crossover Frequency: Preset Dependent AC Power requirements: 640VA Input connector: XLR with link out Power cord: 5m PowerCon True1 Net Dimension (WxHxD): 550 x 550 x 660mm Net Weight: 40kg Transport Dimension (WxHxD): 700 x 700 x 800mm Transport Weight: 50kg
