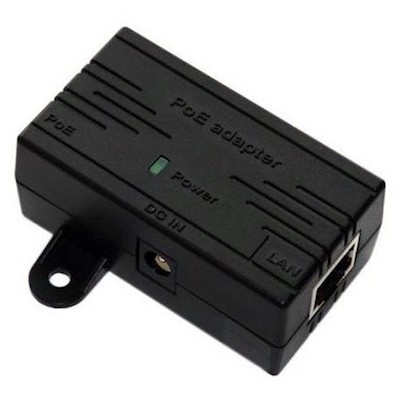

PoE Single Passive Injector

Description Specifications The passive injector is used with the 24V power supply on all radios/access points, * except the MR1750, A40 and A60 * – Power: PIN 4/5, 7/8 – Data: PIN 1/2, 3/6 – Data In: Connects PC/HUB/Switch – Ethernet Data Rate: 10/100TX Mbps – Ethernet Cable: Cat.5 / Cat.5e / Cat.6 – Ethernet Cable Connector: RJ45 – Built-In LED Indicators: Power – Operating Temperature: -0°C ~ 40°C – Storage Temperature: -20°C ~ 60°C – Operating Humidity: 10% to 80% Non-Condensing – Storage Humidity: 5% to 90% Non-Condensing
