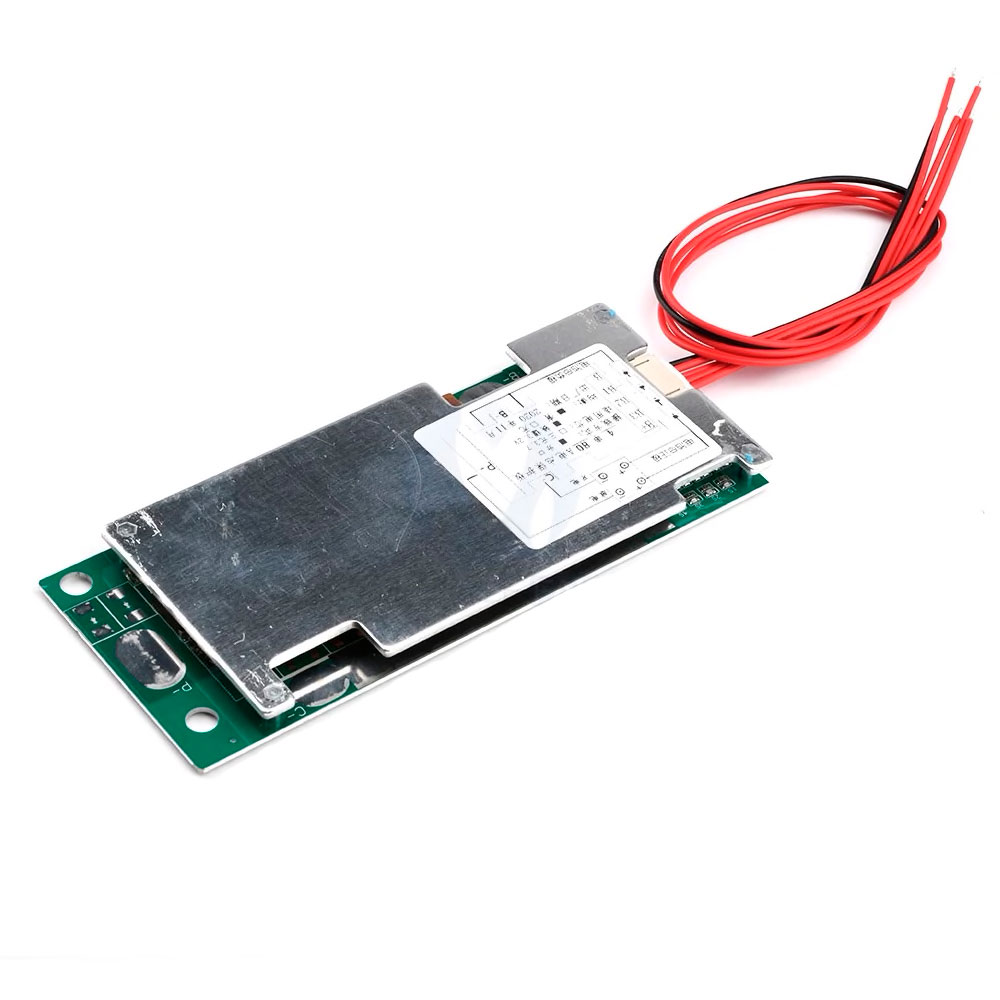

4S 4 Serial Series 12V 80A Balance 18650 Battery Cell BMS Protection PCB Board Module For LiFePo4 Diy Kit Electronic PCB Board

Specifications: Color: As pictures Continuous Operating Current: within 80A Charging Current: within 10A Electrical Parameters:4 string 3.2V Instantaneous Discharge Current:150A Power Detection Voltage:3.60±0.05V Power Release Voltage:3.60±0.05V Electricity Balance Current:36±5mA Temperature Range:-30/ 80° Balance: yes Battery:4 string Features -10 High-power, low resistance MOS, silicone heat, plus a heat sink on the MOS tube. -100A high current outflow, split charge-balanced circuit, corresponding to the rapid. -Positive heat dissipation of the aluminum sheet, when the discharge of the switch MOS tube heat quickly lead to heat up the aluminum plate, fully guarantee the product discharge performance, heat thoroughly, extend product life. -Power battery protection board, special equipment detection, the protection of each chip on the battery charge and discharge. Package Included: 1 x LiFePo4 battery protection plate 1 x cable
